Tracing the Transformer in Diagrams | by Eric Silberstein | Nov, 2024

Final week I used to be listening to an Acquired episode on Nvidia. The episode talks about transformers: the T in GPT and a candidate for the largest invention of the twenty first century.

Strolling down Beacon Avenue, listening, I used to be considering, I perceive transformers, proper? You masks out tokens throughout coaching, you could have these consideration heads that be taught to attach ideas in textual content, you are expecting the likelihood of the following phrase. I’ve downloaded LLMs from Hugging Face and performed with them. I used GPT-3 within the early days earlier than the “chat” half was found out. At Klaviyo we even constructed one of many first GPT-powered generative AI options in our subject line assistant. And manner again I labored on a grammar checker powered by an older model language mannequin. So possibly.

The transformer was invented by a workforce at Google engaged on automated translation, like from English to German. It was launched to the world in 2017 within the now well-known paper Attention Is All You Need. I pulled up the paper and checked out Determine 1:

Hmm…if I understood, it was solely on the most hand-wavy degree. The extra I regarded on the diagram and skim the paper, the extra I noticed I didn’t get the main points. Listed here are just a few questions I wrote down:

• Throughout coaching, are the inputs the tokenized sentences in English and the outputs the tokenized sentences in German?
• What precisely is every merchandise in a coaching batch?
• Why do you feed the output into the mannequin and the way is “masked multi-head consideration” sufficient to maintain it from dishonest by studying the outputs from the outputs?
• What precisely is multi-head consideration?
• How precisely is loss calculated? It could actually’t be that it takes a supply language sentence, interprets the entire thing, and computes the loss, that doesn’t make sense.
• After coaching, what precisely do you feed in to generate a translation?
• Why are there three arrows going into the multi-head consideration blocks?

I’m certain these questions are straightforward and sound naive to 2 classes of individuals. The primary is individuals who had been already working with comparable fashions (e.g. RNN, encoder-decoder) to do comparable issues. They should have immediately understood what the Google workforce achieved and the way they did it once they learn the paper. The second is the numerous, many extra individuals who realized how vital transformers had been these final seven years and took the time to be taught the main points.

Properly, I needed to be taught, and I figured one of the simplest ways was to construct the mannequin from scratch. I acquired misplaced fairly rapidly and as an alternative determined to hint code another person wrote. I discovered this terrific notebook that explains the paper and implements the mannequin in PyTorch. I copied the code and skilled the mannequin. I saved every little thing (inputs, batches, vocabulary, dimensions) tiny in order that I might hint what was occurring at every step. I discovered that noting the size and the tensors on the diagrams helped me preserve issues straight. By the point I completed I had fairly good solutions to all of the questions above, and I’ll get again to answering them after the diagrams.

Listed here are cleaned up variations of my notes. Every part on this half is for coaching one single, tiny batch, which suggests all of the tensors within the totally different diagrams go collectively.

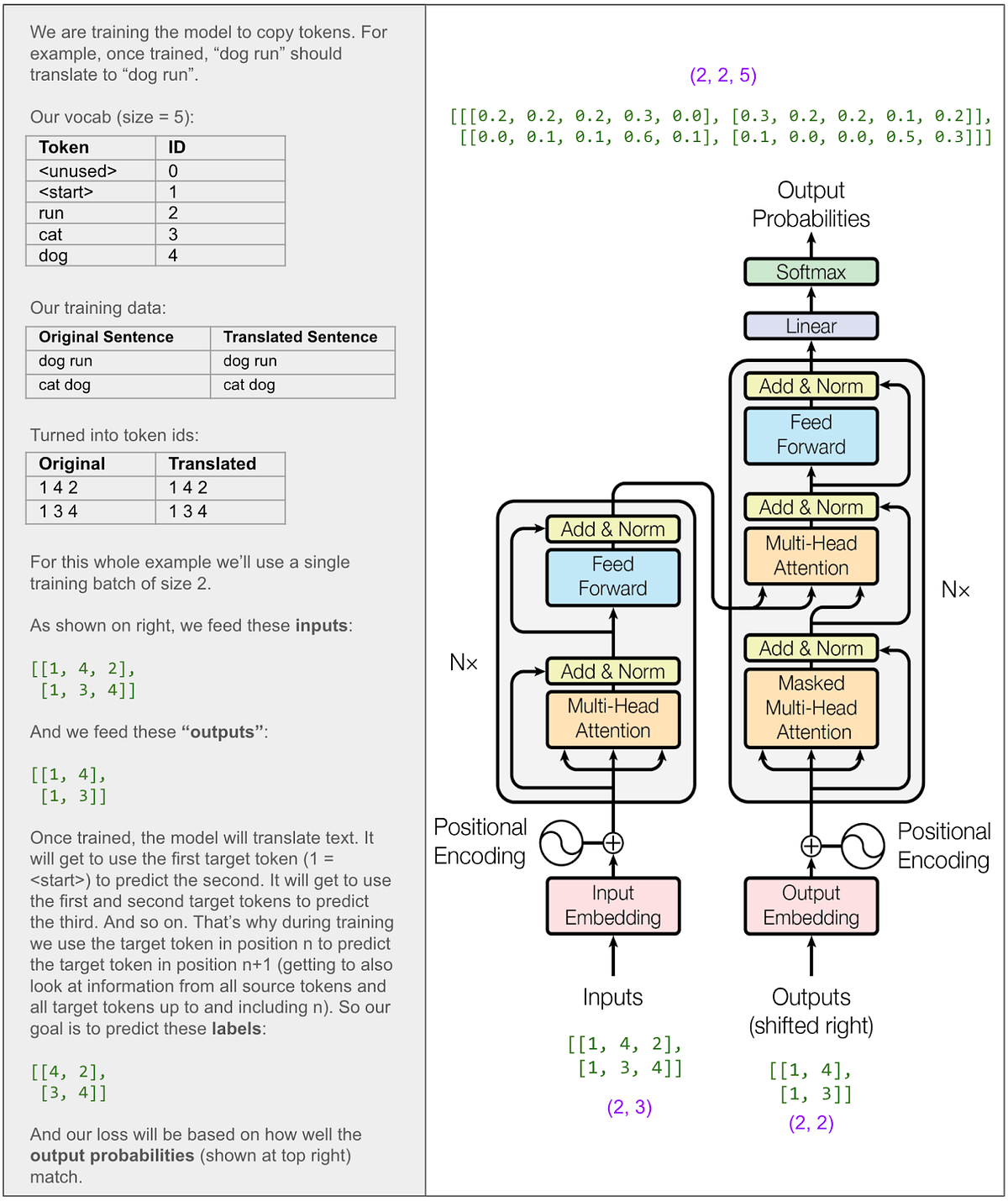

To maintain issues straightforward to observe, and copying an concept from the pocket book, we’re going to coach the mannequin to repeat tokens. For instance, as soon as skilled, “canine run” ought to translate to “canine run”.

In different phrases:

And right here’s making an attempt to place into phrases what the tensor dimensions (proven in purple) on the diagram to date imply:

One of many hyperparameters is d-model and within the base mannequin within the paper it’s 512. On this instance I made it 8. This implies our embedding vectors have size 8. Right here’s the principle diagram once more with dimensions marked in a bunch of locations:

Let’s zoom in on the enter to the encoder:

Many of the blocks proven within the diagram (add & norm, feed ahead, the ultimate linear transformation) act solely on the final dimension (the 8). If that’s all that was occurring then the mannequin would solely get to make use of the data in a single place within the sequence to foretell a single place. Someplace it should get to “combine issues up” amongst positions and that magic occurs within the multi-head consideration blocks.

Let’s zoom in on the multi-head consideration block throughout the encoder. For this subsequent diagram, remember that in my instance I set the hyperparameter h (variety of heads) to 2. (Within the base mannequin within the paper it’s 8.)

How did (2,3,8) grow to be (2,2,3,4)? We did a linear transformation, then took the outcome and cut up it into variety of heads (8 / 2 = 4) and rearranged the tensor dimensions in order that our second dimension is the pinnacle. Let’s have a look at some precise tensors:

We nonetheless haven’t accomplished something that mixes data amongst positions. That’s going to occur subsequent within the scaled dot-product consideration block. The “4” dimension and the “3” dimension will lastly contact.

Let’s have a look at the tensors, however to make it simpler to observe, we’ll look solely on the first merchandise within the batch and the primary head. In different phrases, Q[0,0], Okay[0,0], and so on. The identical factor will likely be occurring to the opposite three.

Let’s have a look at that ultimate matrix multiplication between the output of the softmax and V:

Following from the very starting, we will see that up till that multiplication, every of the three positions in V going all the way in which again to our unique sentence “<begin> canine run” has solely been operated on independently. This multiplication blends in data from different positions for the primary time.

Going again to the multi-head consideration diagram, we will see that the concat places the output of every head again collectively so every place is now represented by a vector of size 8. Discover that the 1.8 and the -1.1 within the tensor after concat however earlier than linear match the 1.8 and -1.1 from the primary two parts within the vector for the primary place of the primary head within the first merchandise within the batch from the output of the scaled dot-product consideration proven above. (The subsequent two numbers match too however they’re hidden by the ellipses.)

Now let’s zoom again out to the entire encoder:

At first I believed I might wish to hint the feed ahead block intimately. It’s known as a “position-wise feed-forward community” within the paper and I believed that meant it’d convey data from one place to positions to the proper of it. Nevertheless, it’s not that. “Place-wise” signifies that it operates independently on every place. It does a linear remodel on every place from 8 parts to 32, does ReLU (max of 0 and quantity), then does one other linear remodel to get again to eight. (That’s in our small instance. Within the base mannequin within the paper it goes from 512 to 2048 after which again to 512. There are numerous parameters right here and doubtless that is the place numerous the educational occurs!) The output of the feed ahead is again to (2,3,8).

Getting away from our toy mannequin for a second, right here’s how the encoder seems within the base mannequin within the paper. It’s very good that the enter and output dimensions match!

Now let’s zoom out all the way in which so we will have a look at the decoder.

We don’t have to hint many of the decoder facet as a result of it’s similar to what we simply checked out on the encoder facet. Nevertheless, the components I labeled A and B are totally different. A is totally different as a result of we do masked multi-head consideration. This have to be the place the magic occurs to not “cheat” whereas coaching. B we’ll come again to later. However first let’s disguise the interior particulars and take into accout the large image of what we wish to come out of the decoder.

And simply to actually drive house this level, suppose our English sentence is “she pet the canine” and our translated Pig Latin sentence is “eshay etpay ethay ogday”. If the mannequin has “eshay etpay ethay” and is making an attempt to provide you with the following phrase, “ogday” and “atcay” are each excessive likelihood decisions. Given the context of the complete English sentence of “she pet the canine,” it actually ought to be capable of select “ogday.” Nevertheless, if the mannequin might see the “ogday” throughout coaching, it wouldn’t have to discover ways to predict utilizing the context, it could simply be taught to repeat.

Let’s see how the masking does this. We will skip forward a bit as a result of the primary a part of A works precisely the identical as earlier than the place it applies linear transforms and splits issues up into heads. The one distinction is the size coming into the scaled dot-product consideration half are (2,2,2,4) as an alternative of (2,2,3,4) as a result of our unique enter sequence is of size two. Right here’s the scaled dot-product consideration half. As we did on the encoder facet, we’re solely the primary merchandise within the batch and the primary head.

This time we’ve a masks. Let’s have a look at the ultimate matrix multiplication between the output of the softmax and V:

Now we’re prepared to have a look at B, the second multi-head consideration within the decoder. Not like the opposite two multi-head consideration blocks, we’re not feeding in three an identical tensors, so we want to consider what’s V, what’s Okay and what’s Q. I labeled the inputs in crimson. We will see that V and Okay come from the output of the encoder and have dimension (2,3,8). Q has dimension (2,2,8).

As earlier than, we skip forward to the scaled dot-product consideration half. It is sensible, however can be complicated, that V and Okay have dimensions (2,2,3,4) — two objects within the batch, two heads, three positions, vectors of size 4, and Q has dimension (2,2,2,4).

Although we’re “studying from” the encoder output the place the “sequence” size is three, someway all of the matrix math works out and we find yourself with our desired dimension (2,2,2,4). Let’s have a look at the ultimate matrix multiplication:

The outputs of every multi-head consideration block get added collectively. Let’s skip forward to see the output from the decoder and turning that into predictions:

The linear remodel takes us from (2,2,8) to (2,2,5). Take into consideration that as reversing the embedding, besides that as an alternative of going from a vector of size 8 to the integer identifier for a single token, we go to a likelihood distribution over our vocabulary of 5 tokens. The numbers in our tiny instance make that appear just a little humorous. Within the paper, it’s extra like going from a vector of measurement 512 to a vocabulary of 37,000 once they did English to German.

In a second we’ll calculate the loss. First, although, even at a look, you will get a really feel for a way the mannequin is doing.

It acquired one token proper. No shock as a result of that is our first coaching batch and it’s all simply random. One good factor about this diagram is it makes clear that it is a multi-class classification downside. The lessons are the vocabulary (5 lessons on this case) and, that is what I used to be confused about earlier than, we make (and rating) one prediction per token within the translated sentence, NOT one prediction per sentence. Let’s do the precise loss calculation.

If, for instance, the -3.2 grew to become a -2.2, our loss would lower to five.7, transferring within the desired path, as a result of we wish the mannequin to be taught that the right prediction for that first token is 4.

The diagram above leaves out label smoothing. Within the precise paper, the loss calculation smooths labels and makes use of KL Divergence loss. I believe that works out to be the identical or simialr to cross entropy when there is no such thing as a smoothing. Right here’s the identical diagram as above however with label smoothing.

Let’s additionally take a fast have a look at the variety of parameters being discovered within the encoder and decoder:

As a sanity verify, the feed ahead block in our toy mannequin has a linear transformation from 8 to 32 and again to eight (as defined above) in order that’s 8 * 32 (weights) + 32 (bias) + 32 * 8 (weights) + 8 (bias) = 52. Needless to say within the base mannequin within the paper, the place d-model is 512 and d-ff is 2048 and there are 6 encoders and 6 decoders there will likely be many extra parameters.

Now let’s see how we put supply language textual content in and get translated textual content out. I’m nonetheless utilizing a toy mannequin right here skilled to “translate” by coping tokens, however as an alternative of the instance above, this one makes use of a vocabulary of measurement 11 and d-model is 512. (Above we had vocabulary of measurement 5 and d-model was 8.)

First let’s do a translation. Then we’ll see the way it works.

The first step is to feed the supply sentence into the encoder and maintain onto its output, which on this case is a tensor with dimensions (1, 10, 512).

Step two is to feed the primary token of the output into the decoder and predict the second token. We all know the primary token as a result of it’s all the time <begin> = 1.

Within the paper, they use beam search with a beam measurement of 4, which suggests we’d contemplate the 4 highest likelihood tokens at this level. To maintain issues easy I’m going to as an alternative use grasping search. You’ll be able to consider that as a beam search with a beam measurement of 1. So, studying off from the highest of the diagram, the very best likelihood token is quantity 5. (The outputs above are logs of chances. The very best likelihood remains to be the very best quantity. On this case that’s -0.0 which is definitely -0.004 however I’m solely displaying one decimal place. The mannequin is absolutely assured that 5 is right! exp(-0.004) = 99.6%)

Now we feed [1,5] into the decoder. (If we had been doing beam search with a beam measurement of two, we might as an alternative feed in a batch containing [1,5] and [1,4] which is the following almost definitely.)

Now we feed [1,5,4]:

And get out 3. And so forth till we get a token that signifies the tip of the sentence (not current in our instance vocabulary) or hit a most size.

Now I can largely reply my unique questions.

Sure, roughly.

Every merchandise corresponds to at least one translated sentence pair.

• The “x” of the merchandise has two components. The primary half is all of the tokens of the supply sentence. The second half is all tokens of the goal sentence apart from the final one.
• The “y” (label) of the merchandise is all tokens of the goal sentence apart from the primary one. For the reason that first token for supply and goal is all the time <begin>, we’re not losing or dropping any coaching knowledge.

What’s just a little refined is that if this had been a classification process the place say the mannequin needed to take a picture and output a category (home, automotive, rabbit, and so on.), we’d consider every merchandise within the batch as contributing one “classification” to the loss calculation. Right here, nevertheless, every merchandise within the batch will contribute (number_of_tokens_in_target_sentence — 1) “classifications” to the loss calculation.

You feed the output so the mannequin can be taught to foretell the interpretation based mostly each on the which means of the supply sentence and the phrases translated to date. Though a lot of issues are occurring within the mannequin, the one time data strikes between positions is throughout the consideration steps. Though we do feed the translated sentence into the decoder, the primary consideration calculation makes use of a masks to zero out all data from positions past the one we’re predicting.

I most likely ought to have requested what precisely is consideration, as a result of that’s the extra central idea. Multi-head consideration means slicing the vectors up into teams, doing consideration on the teams, after which placing the teams again collectively. For instance, if the vectors have measurement 512 and there are 8 heads, consideration will likely be accomplished independently on 8 teams every containing a full batch of the complete positions, every place having a vector of measurement 64. If you happen to squint, you’ll be able to see how every head might find yourself studying to offer consideration to sure linked ideas as within the well-known visualizations displaying how a head will be taught what phrase a pronoun references.

Proper. We’re not translating a full sentence in a single go and calculating total sentence similarity or one thing like that. Loss is calculated identical to in different multi-class classification issues. The lessons are the tokens in our vocabulary. The trick is we’re independently predicting a category for each token within the goal sentence utilizing solely the data we should always have at that time. The labels are the precise tokens from our goal sentence. Utilizing the predictions and labels we calculate loss utilizing cross entropy. (In actuality we “clean” our labels to account for the truth that they’re notabsolute, a synonym might typically work equally nicely.)

You’ll be able to’t feed one thing in and have the mannequin spit out the interpretation in a single analysis. It’s essential use the mannequin a number of instances. You first feed the supply sentence into the encoder a part of the mannequin and get an encoded model of the sentence that represents its which means in some summary, deep manner. Then you definately feed that encoded data and the beginning token <begin> into the decoder a part of the mannequin. That allows you to predict the second token within the goal sentence. Then you definately feed within the <begin> and second token to foretell the third. You repeat this till you could have a full translated sentence. (In actuality, although, you contemplate a number of excessive likelihood tokens for every place, feed a number of candidate sequences in every time, and choose the ultimate translated sentence based mostly on complete likelihood and a size penalty.)

I’m guessing three causes. 1) To indicate that the second multi-head consideration block within the decoder will get a few of its enter from the encoder and a few from the prior block within the decoder. 2) To trace at how the eye algorithm works. 3) To trace that every of the three inputs undergoes its personal unbiased linear transformation earlier than the precise consideration occurs.

It’s stunning! I most likely wouldn’t suppose that if it weren’t so extremely helpful. I now get the sensation individuals should have had once they first noticed this factor working. This elegant and trainable mannequin expressible in little or no code discovered find out how to translate human languages and beat out sophisticated machine translations methods constructed over many years. It’s wonderful and intelligent and unbelievable. You’ll be able to see how the following step was to say, neglect about translated sentence pairs, let’s use this system on each little bit of textual content on the web — and LLMs had been born!

(I guess have some errors above. Please LMK.)

Until in any other case famous, all photographs are by writer, or include annotations by the writer on figures from Attention Is All You Need.
